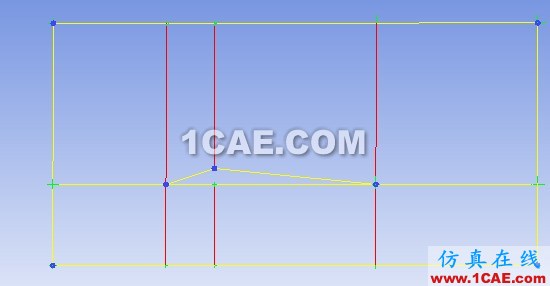

加号处用move vertex合并为一处,此时加号右边的两条线合并为一条。当然,两条线之间的块依然存在,而此时如果不删除这个块的话,最后生成的网格就会出现负体积(错误)。删除后重新生成网格就会解决问题。
上面的方法是错误的 (会生成如下错误)
> Reading "F:\Fluent Example\ICEM
CFD\feiji.msh"...
17290 nodes.
16833 quadrilateral
cells, zone 13.
33211 2D interior faces,
zone 14.
93 2D
velocity-inlet faces, zone 15.
181 2D
velocity-inlet faces, zone 16.
93 2D
pressure-outlet faces, zone 17.
181 2D
pressure-outlet faces, zone 18.
98 2D
wall faces, zone 19.
98 2D
wall faces, zone 20.
132 2D
wall faces, zone 21.
Building...
mesh
Error:
FLUENT received fatal signal (ACCESS_VIOLATION)
1. Note exact events leading to error.
2. Save case/data under new name.
3. Exit program and restart to continue.
4. Report error to your distributor.
Error:
FLUENT received fatal signal (ACCESS_VIOLATION)
1. Note exact events leading to error.
2. Save case/data under new name.
3. Exit program and restart to continue.
4. Report error to your distributor.
Error Object: #f

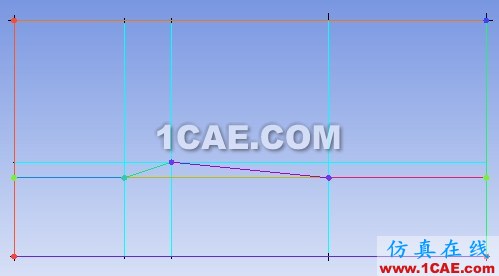

正确方法:
使用merge vertex 方法
merge vertex >collapse
blocks>坍塌三角翼两遍的两个矩形block(因为如果直接删除的话在某一为零的面区域里就没有网格划分,因此会出现fatal
error),之后建立恰当的映射关系即可!
